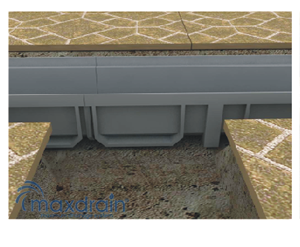

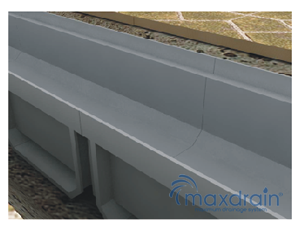

Our modular channels are telescopic and in 50 cm length.

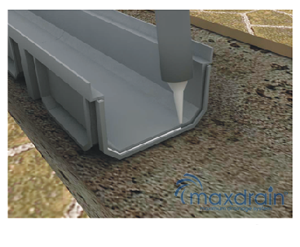

It is recommended to use polyurethane based mastic on
joints to provide absolute tightness.

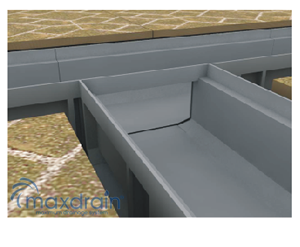

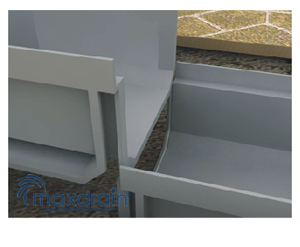

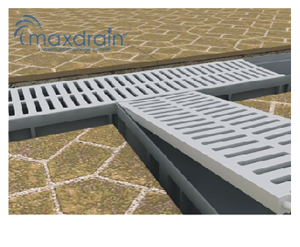

As our channels have 6 side outlets, 90 degree curve,
T or (+) channel systems can be created.After making
connections to side outlets, water transition area is
opened by breaking the weakened parts.
|
 |
|
|
|
|

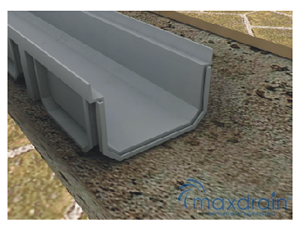

 Excavate a wide and deep trench to
accommodate the channel
|
 Erect a string line at each end of the
drain run as a guide for laying the
|
 Channels to the required level
|
 Use PU filling to reinforce channel
inside of trench nad insulate from water
|
 Wait till PU has dried
|

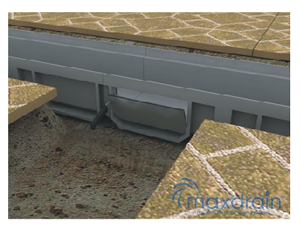

 Using maket knife cut open side
windows of channel |

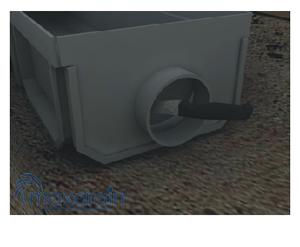

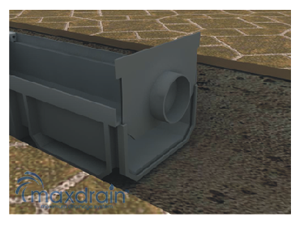

 Mount stopper to the outlet |
 Using PU filling connect pipes into the
holes of cut out side windows |

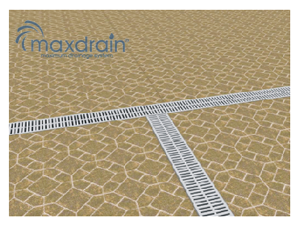

 Mount grid |
| Mount stopper to the outlet |
 Using maket knife cut open outlet |

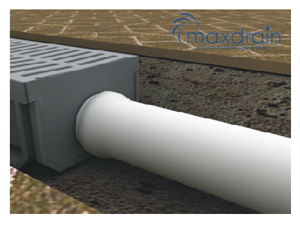

 Using PU filling install Pimaş pipe |
 Using PU filling install Pimaş pipe |
